DFR Oscillograph
Home DMF SSR Protection DFR Oscillograph PMU Controller SSR Damping Control

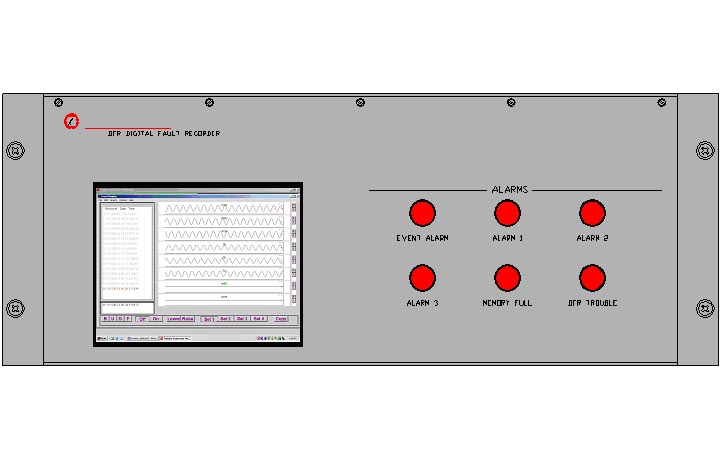

DFR Front Panel                                                                                DFR Event Oscillograph Screen

 DFR Equipment

The Digital Fault Recorder (DFR) is used to capture Sub-Station equipment response typically voltage and current and breaker and switch position for evaluating equipment performance during system disturbances and for diagnosis of system dynamic performance.

Key Benefits

bulletCombines industry standard features with modern technology
bulletEthernet communications
bulletHigh event capacity, and long duration events
bulletData interface to windows enterprise software
bulletGPS Time stamping and 1 sec sample synchronization with other IT Inc. DFR
bulletComtrade file generation
bulletUser configurable channel and triggering

Information Request Form

Select the items that apply, and then let us know how to contact you.

Send DFR product literature
Send company literature
Have a salesperson contact me
